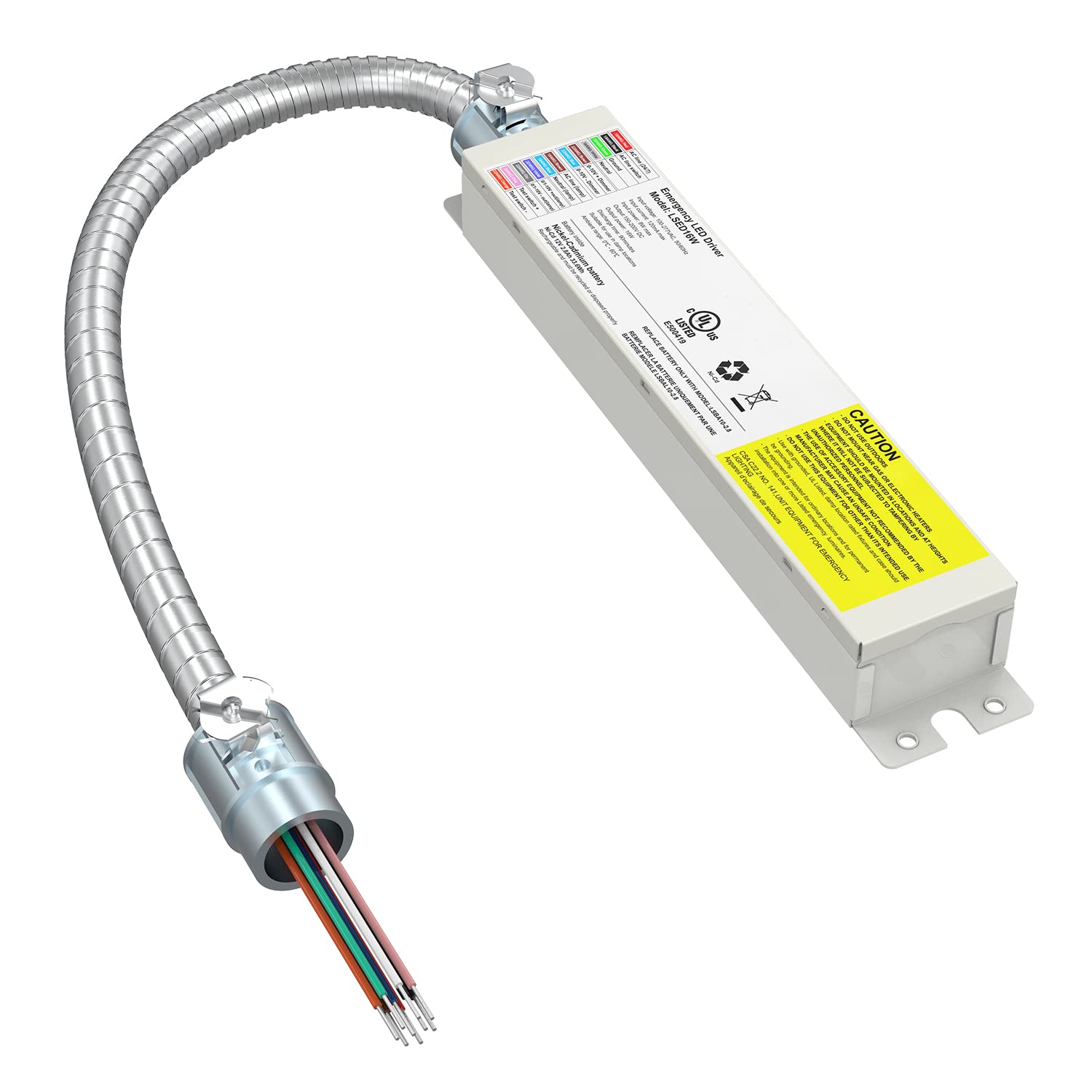

20W LED Emergency Driver Backup Battery 100-277V AC, UL Listed

This robust 20W LED emergency light driver is an ideal power supply for both panel and linear lights. It has a 100-247V AC input and a 175V DC rechargeable emergency driver backup battery, providing up to 90 minutes of emergency power. UL listed and backed by a 5-year warranty.

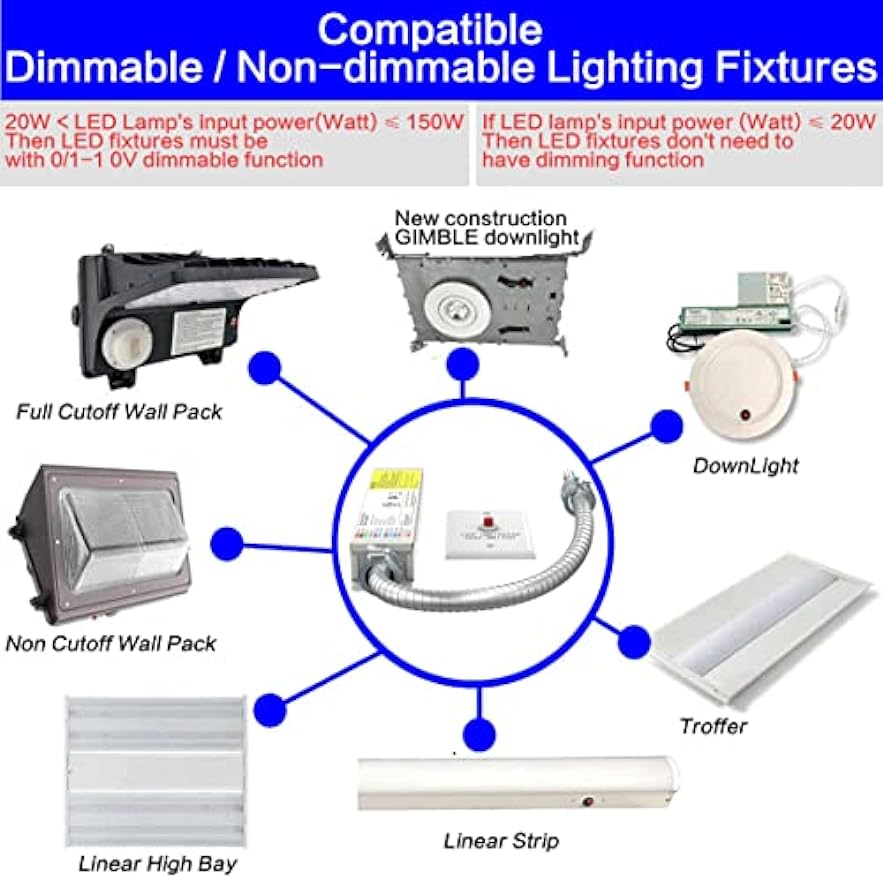

Application： This 20W LED Emergency Light with Backup Battery is suitable for below two kinds of led fixtures.

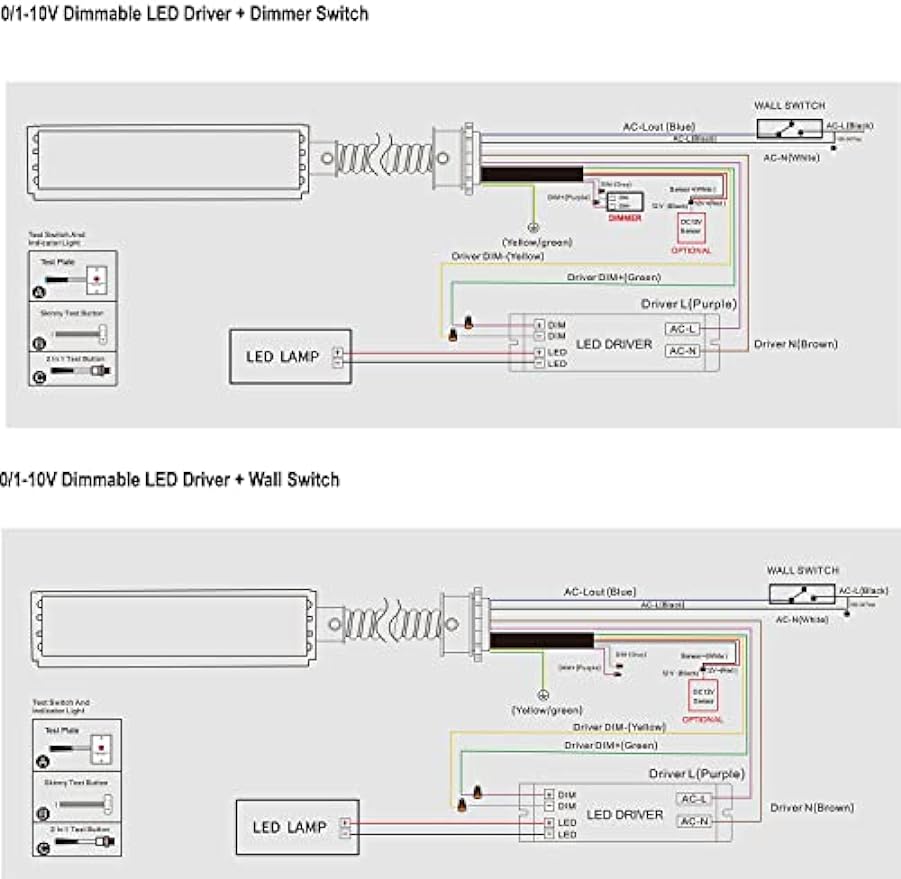

1. If LED lamps input power higher than emergency output power (20W), then this LED fixtures must be with 0-10V or 1-10V dimmable, LED fixtures power150W max. Like led panels, led troffers, led linear shop lights and etc.

2. If LED lamps input power less than emergency output power (20W), then this LED fixtures no need to have dimmable function, like led tubes, downlight and etc.

Specifications：

• Housing Color: White color
• Input Voltage: 100-347Vac, 50/60Hz
• Input Current: ≤100mA
• Input Power: 8W max
• Output Voltage: ≤175VDC
• Output Power: 20W
• Discharging Time: ≥90Minutes
• Charging Time: ≥24 Hours
• Conduit length: 17.7inch (450mm)
• Battery: Li-ion Battery
• Ambient temperature: 0℃ to +50℃（32℉ to 122℉ )
• Dimensions:12.91 X 1.9 X 0.94 inch
• UL Listed
