Description

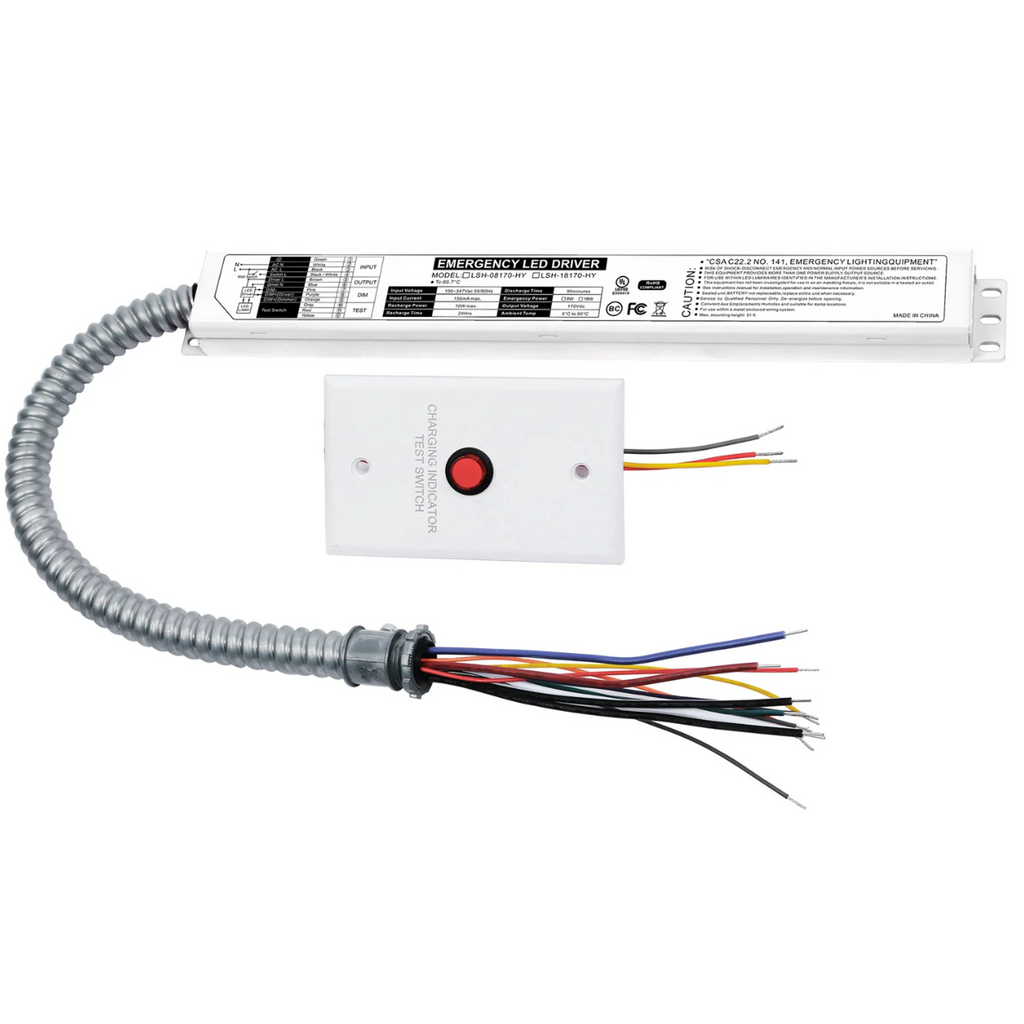

The TANLITE Lighting 8W LED Emergency Backup Driver is designed for commercial LED lighting applications. ensuring reliable emergency lighting during power outages. This backup driver operates on AC 100-347V and provides emergency lighting for up to 90 minutes. making it an essential component for safety and compliance in various commercial settings.
Features
- UL Listed for the US and CANADA
- Listedto UL924 and tested to CSA C22.2NO.141 Field or factory installation
- Low energy consumption CECTitle20 compliance
- High voltage Input
- Constant output power
- Self-testing
- Battery: Over Temperature Protection. Overcharge Protection. Over-Discharge Protection
- Malfunctionindicate function
- For wiring to the LED driver's AC input
Specifications
- Input voltage: 100-347V AC 50/60 Hz
- Input current: 150 mA max
- Recharge power: 10W max.
- Recharge time: 24 hours
- Discharge time: 90 minutes
- Emergency power: 8W
- Output voltage: 170V dc
- Ambient Temp： 5 ℃ to 50 ℃
Caution
- RISK OF SHOCK-DISCONNECT EMERGENCY AND NORMAL INPUT POWER SOURCES BEFORE SERVICING
- THIS EQUIPMENT PROVIDES MORE THAN ONE POWER SUPPLY OUTPUT SOURCE
- FOR USE WITHIN LED LUMINAIRES IDENTIFIED IN THE MANUFACTURER'S INSTALLATION INSTRUCTIONS
