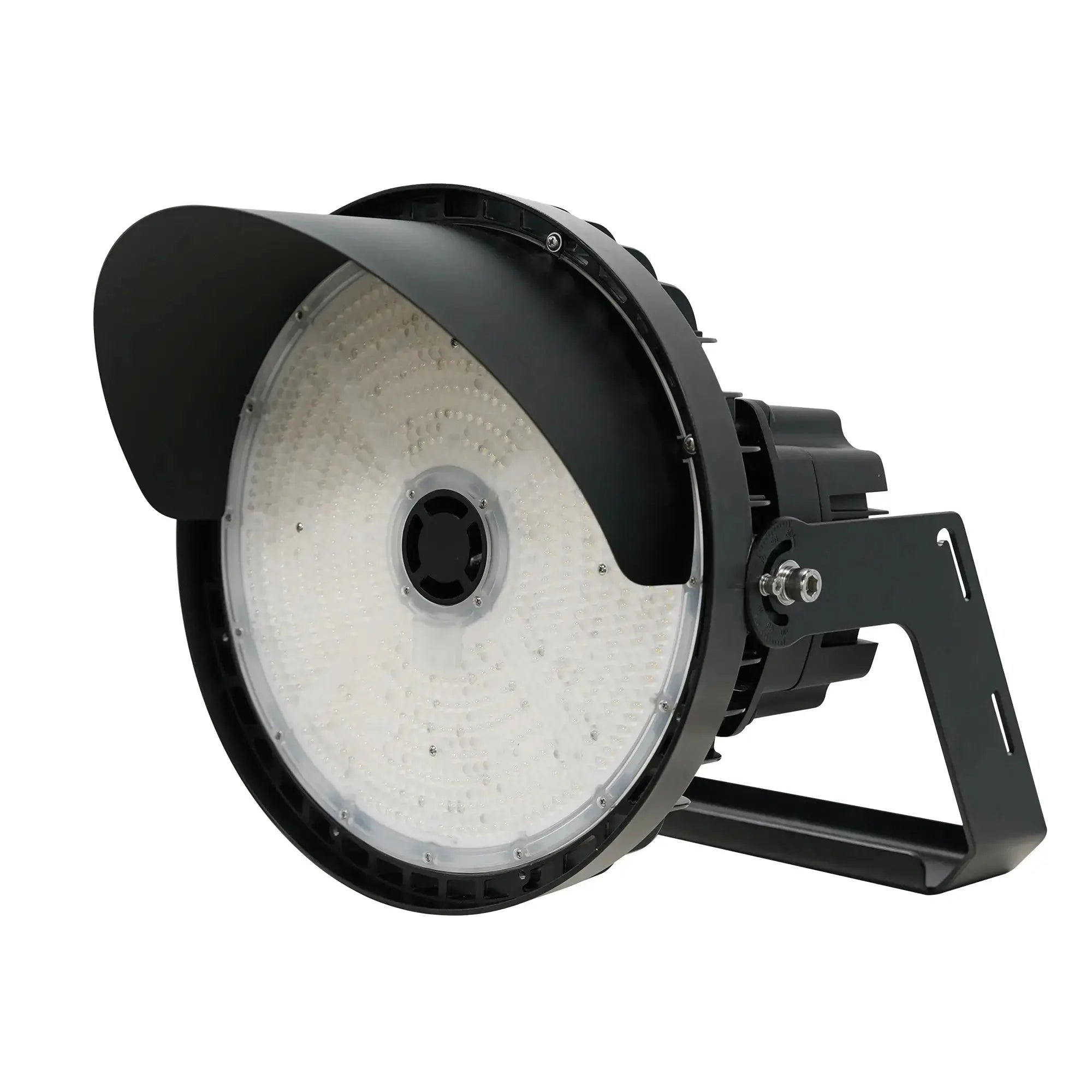

LED Sport Light - 300W/400W/500W Selectable - Opti-Select - AC 120~277V - Up to 75,000 lumens

The TANLITE Lighting LED Sports Light is a high-performance stadium floodlight engineered for demanding outdoor sports and large-area lighting applications. With Opti-Select technology, the fixture allows installers to adjust wattage (300W / 400W / 500W) and beam angles to achieve optimal illumination for different mounting heights and field layouts.

Delivering up to 75,000 lumens at 150 lm/W, this powerful LED sports light provides a highly efficient replacement for traditional 2000W metal halide stadium fixtures, significantly reducing energy consumption and maintenance costs.

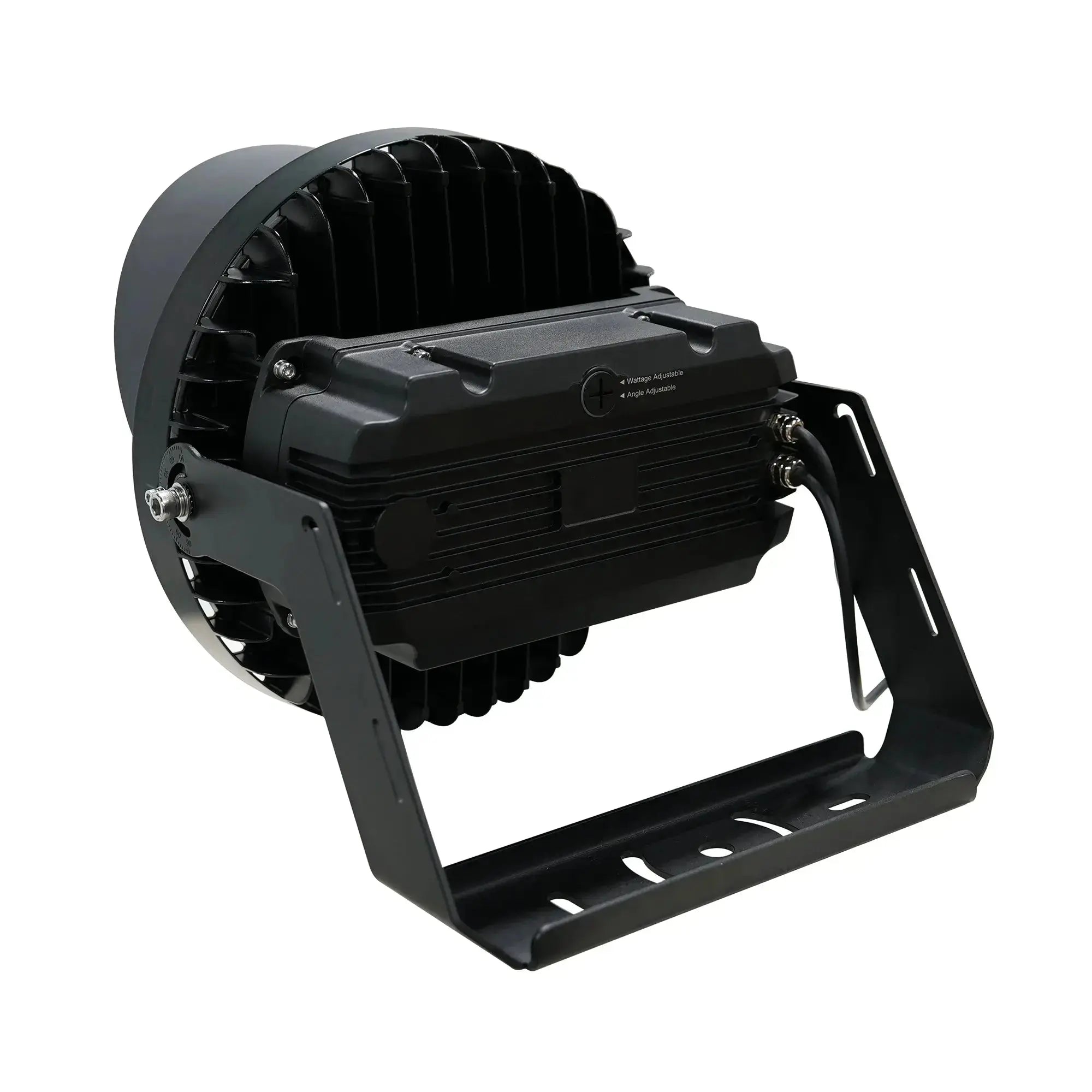

Constructed with a durable die-cast aluminum housing, a separate driver compartment, and IP65 weather protection, the fixture ensures reliable operation in harsh outdoor environments. The integrated formed aluminum glare shield visor helps reduce high-angle light spill and glare, improving visual comfort for athletes and spectators.

Explore the Advantages of the LED Sport Light with Opti-Select Technology

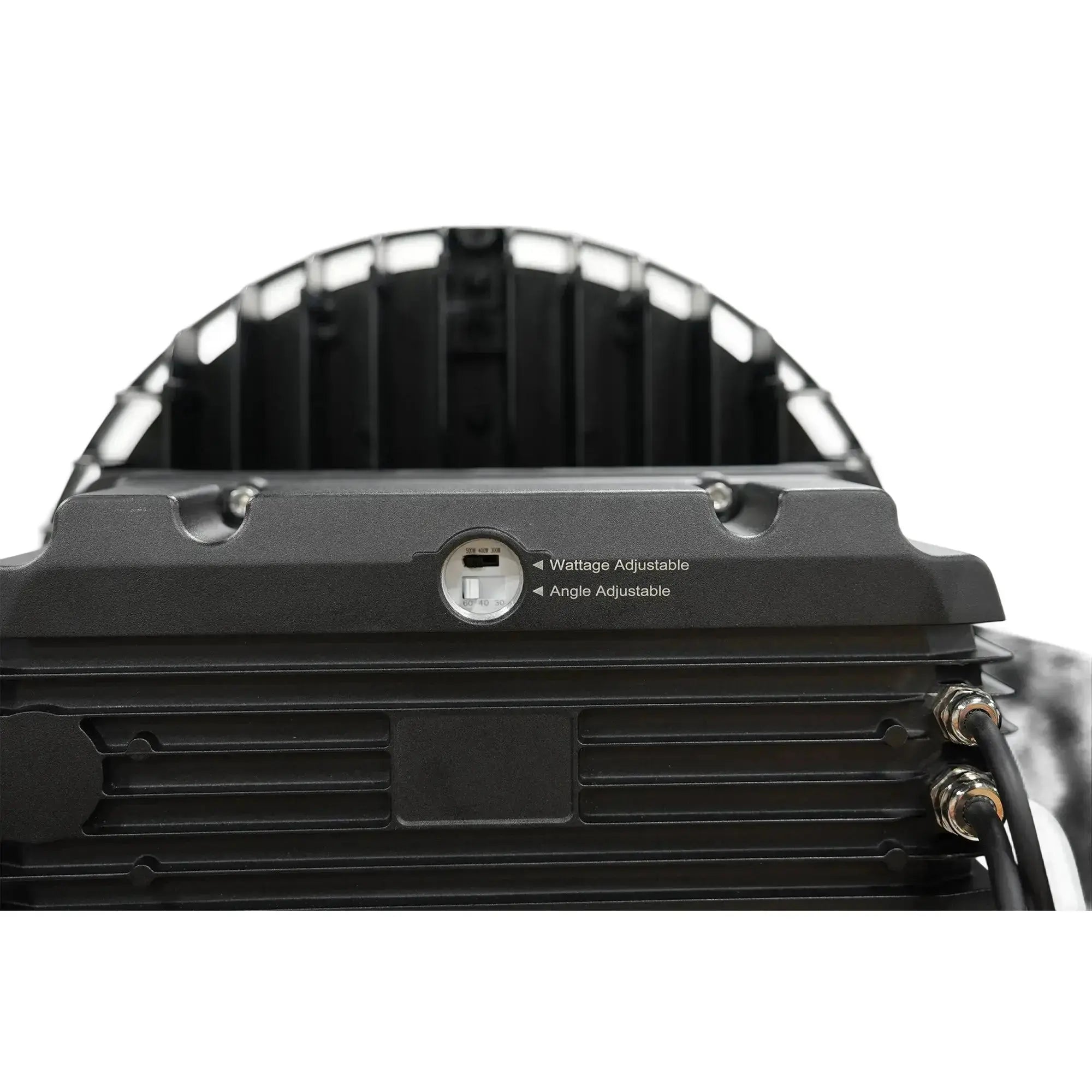

Selectable Power (Opti-Select Technology)

Adjustable 300W / 400W / 500W wattage provides flexible lighting output for different sports field requirements.

High Lumen Output

Produces up to 75,000 lumens with 150 lm/W efficiency, delivering bright and uniform stadium illumination.

Adjustable Optics

Precision optics with 30° NEMA 4 distribution pattern for long-throw lighting performance. Beam angle can also be configured for different applications.

Premium LED Components

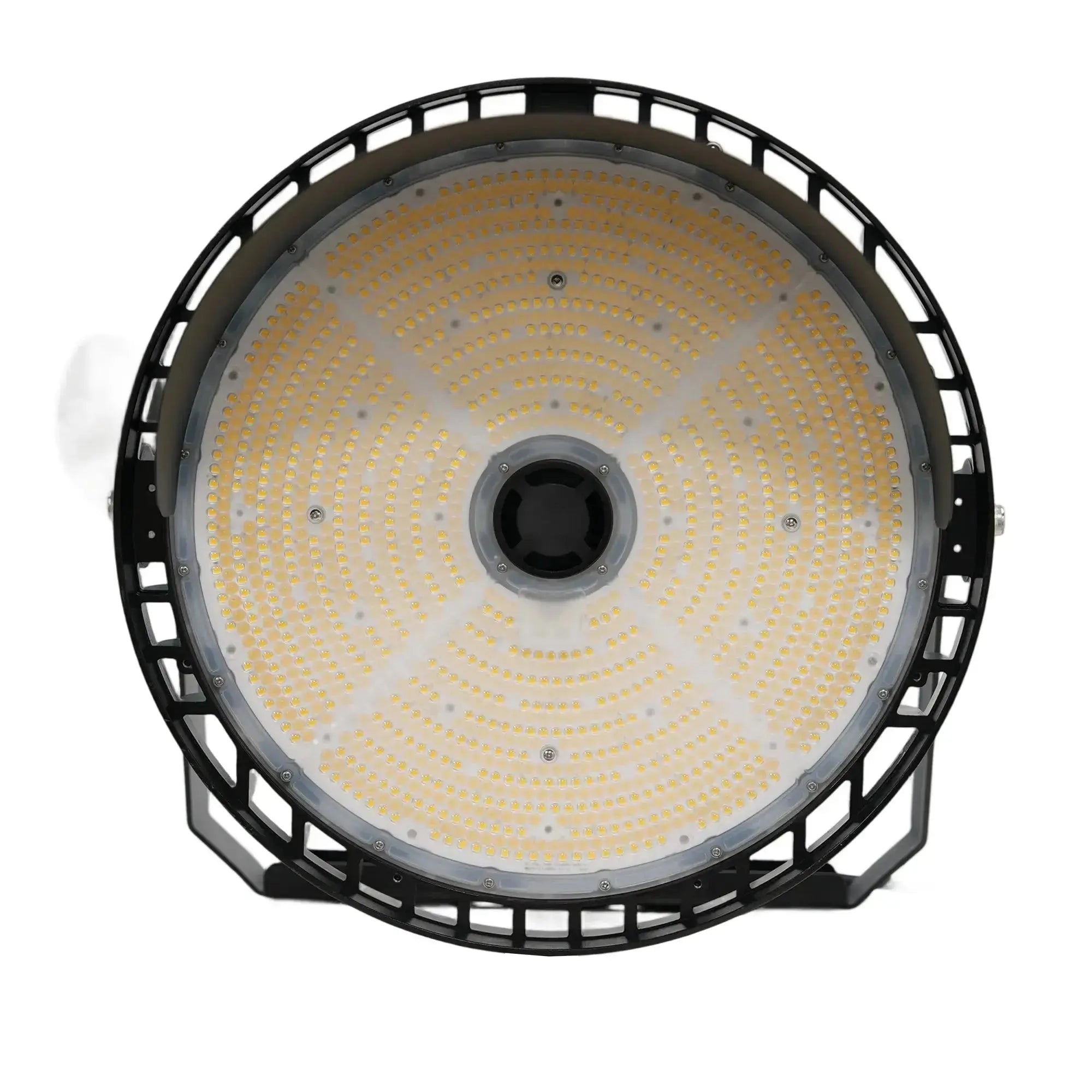

Equipped with 504 Bridgelux SMD3030 LED chips for reliable brightness and long operating life.

Durable Outdoor Construction

Heavy-duty brown die-cast aluminum housing with IP65 protection ensures long-term durability in outdoor environments.

Glare Reduction Design

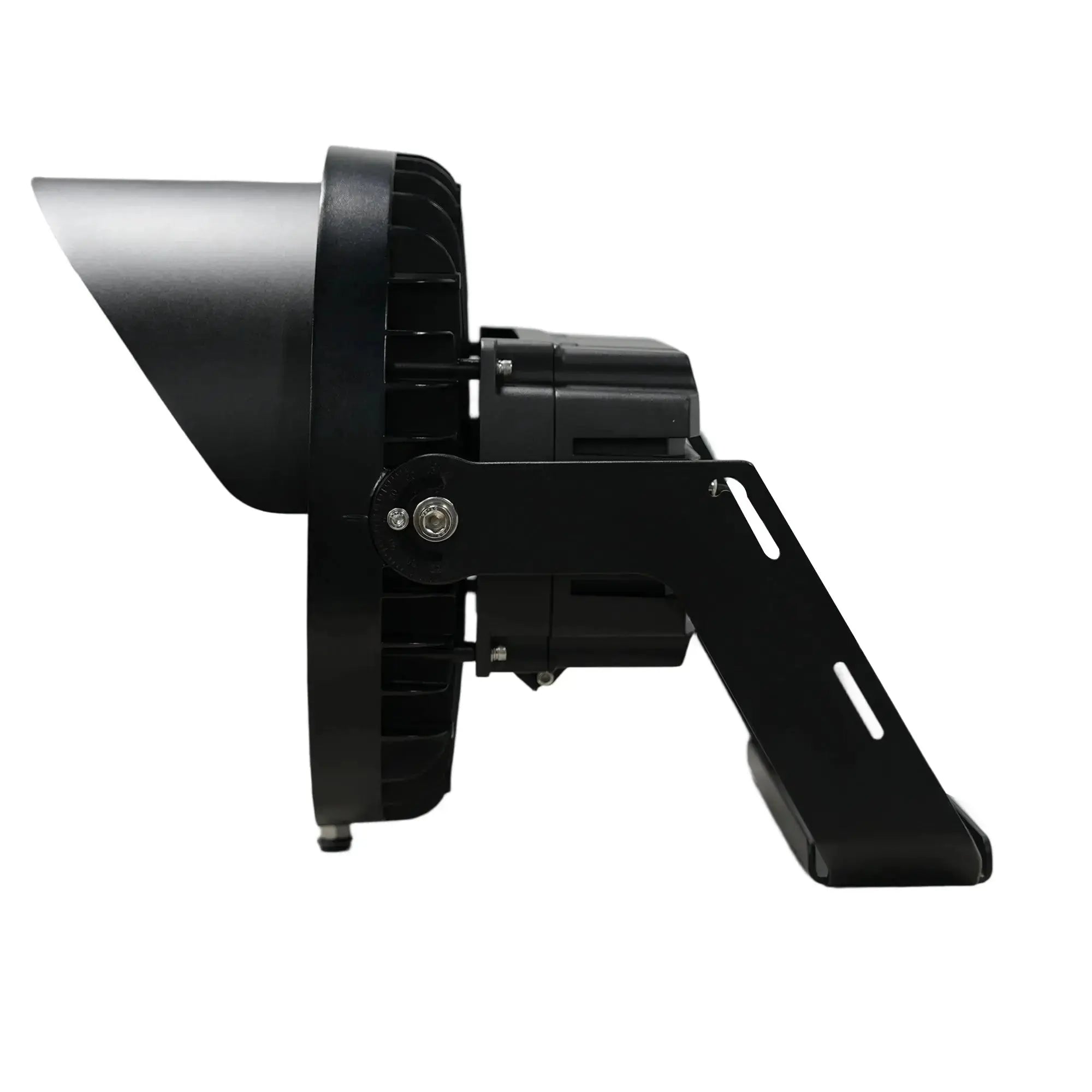

Includes an aluminum glare shield visor to minimize light pollution and improve visual comfort.

0–10V Dimming

Supports 0-10V dimming controls for energy management and smart lighting systems.

Low Wind Load

Compact design with EPA rating of 1.6 ft², suitable for high-mast and stadium installations.

Specifications

• Brand: TANLITE Lighting

• Fixture Type: LED Stadium / Sports Flood Light

• Power Options: 300W / 400W / 500W selectable

• Beam Angle: 30°/ 40° / 60°

• Efficiency: 150 lm/W

• Max Lumen Output: Up to 75,000 lumens

• Color Temperature: 5000K

• Input Voltage: AC 120–277V

• LED Type: Bridgelux SMD3030 (504 pcs)

• Distribution: NEMA 4, 30° beam

• Dimming: 0-10V dimmable

• IP Rating: IP65

• EPA: 1.6 ft²

• Housing: Brown die-cast aluminum

Applications

• Stadium and arena lighting

• Football and soccer fields

• Baseball and softball stadiums

• Tennis and basketball courts

• High-mast outdoor area lighting

• Ports, rail yards, and industrial complexes

Versatile Power Selection for Customized Illumination

The LED Sport Light offers selectable wattages – 300W, 400W, or 500W – allowing users to tailor brightness to their specific needs. This flexibility ensures optimal illumination levels while maintaining energy efficiency. Whether lighting small sports courts or large stadiums, this lighting solution adapts seamlessly, providing up to 75,000 lumens of powerful light output. The adjustable power feature simplifies installation, enabling users to meet diverse lighting requirements with just one product model.

Advanced Opti-Select Technology for Enhanced Performance

Equipped with innovative Opti-Select technology, this LED Sport Light optimizes light distribution and color rendering. The technology enhances uniformity and reduces glare, making the light ideal for dynamic sports environments. Opti-Select also supports easy wattage switching without the need for additional parts or complex rewiring, simplifying maintenance and upgrades. This advanced feature ensures consistent performance and superior visual clarity for athletes and spectators alike.

Wide Voltage Compatibility and Robust Design

Designed for versatility, the LED Sport Light operates on AC 120~277V input voltage, ensuring compatibility with a broad range of electrical systems worldwide. Its durable construction guarantees reliable performance in various outdoor conditions, such as stadiums and sports complexes. The ability to produce up to 75,000 lumens while maintaining energy efficiency highlights its suitability for long-term installations. This product is engineered to deliver sustainable, high-quality lighting solutions for all your sports lighting needs.
